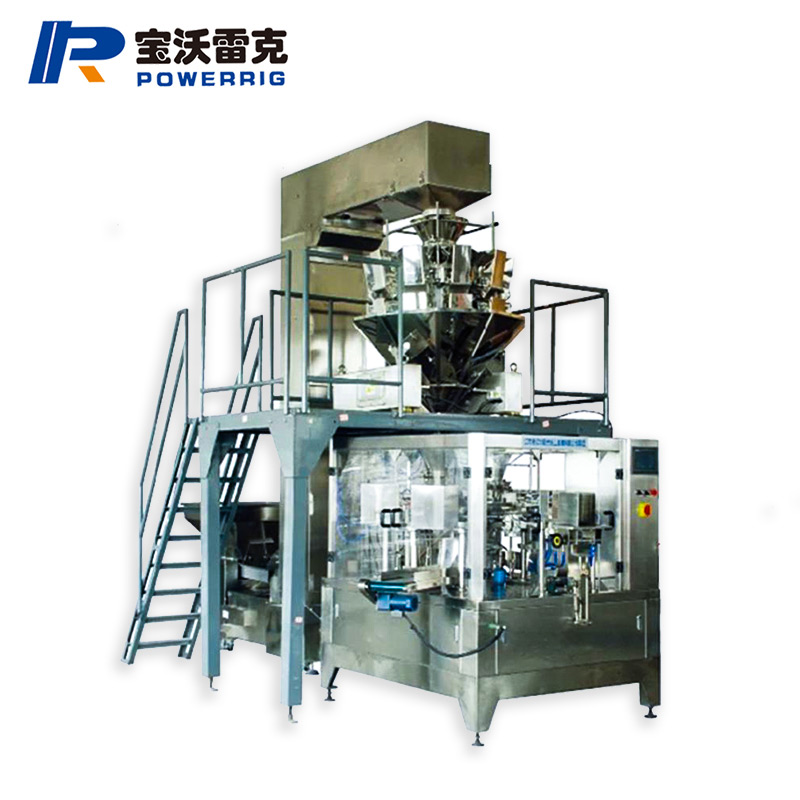

GD6-200C給袋包裝機
TAG標簽：
給袋包裝機
給袋式包裝機
本機是在消化和吸取國內外同類產品的先進經驗的基礎上，研制出的新一代產品。它應用廣泛，適用于各種物料的包裝。通過與液體灌裝機、組合秤、螺桿秤等配套使用，可進行液體、粉劑、顆粒、固體等各種物料的包裝，只需根據不同的物料選擇不同計量充填裝置即可。該機采用了國際知名品牌的PLC控制系統和觸摸屏的操作系統，使用變頻調速裝置,在規定范圍內可隨意調節速度;具有自動檢測功能(如不開袋或開袋不完整時,不加料,不熱封,袋子可再次利用。);當工作氣壓或加熱管故障時,將有報警提示。根據生產需要可選擇工位要求（如六工位，八工位）。本機與物料接觸部位均采用優質不銹鋼制作。本機符合GMP要求。
主要參數:
1、 機械工位：六工位
2、 袋子材料：PET/AL/CPP復合膜
3、 袋子類型：自立袋,平面袋
4、 袋子尺寸：長(100～350mm)×寬(100～210mm)
5、 生產速度：20-60袋/分（其速度由產品自身及填充重量決定）
6、 電源：380V 三相四線
7、 功率：2.5KW
8、 工作氣壓：0.6～0.8MPa
9、 耗氣量：0.8m3/min
10、 外形尺寸:2215mm×1280mm×1650mm
GD6-200C Pouch Packing Machine
This machine is a new generation, based on the experience of the same products home and abroad, this is a new generation.
It is widely used for packing various kinds of materials. Assorted with liquid filling device, combination weigher, screw scale, it can pack different materials like liquid, powder, granular, solid and so on.
Using the famous brand PLC and touch screen, it is easy to operate. Frequency control device can adjust the speed optionally in the suitable limit. IF the bag is not opened enough, the automatic detection function will not fill and seal and reuse the bags. It can alarm when the working air pressure and heating pipe have breakdown. According to the capacity, you can choose different working positions like six and eight.
The parts contacting with material use the high quality stainless steel.
This machine is in accord with GMP
Technical parameters:
1. Working position: 6
2. Pouch material: PET/AL/CPP composite membrane
3. Pouch type: doypack, flat bag
4. Pouch size: (100-350)*(100-210) (L*W)
5. Speed: 20-60 pouches/min
6. Voltage: 380V, three-phase four- wire
7. Power: 2.5KW
8. Air pressure: 0.6-08Mpa
9. Air consumption: 0.8m3/min
10. Dimensions: 2215*1280*1650mm
本機是在消化和吸取國內外同類產品的先進經驗的基礎上，研制出的新一代產品。它應用廣泛，適用于各種物料的包裝。通過與液體灌裝機、組合秤、螺桿秤等配套使用，可進行液體、粉劑、顆粒、固體等各種物料的包裝，只需根據不同的物料選擇不同計量充填裝置即可。該機采用了國際知名品牌的PLC控制系統和觸摸屏的操作系統，使用變頻調速裝置,在規定范圍內可隨意調節速度;具有自動檢測功能(如不開袋或開袋不完整時,不加料,不熱封,袋子可再次利用。);當工作氣壓或加熱管故障時,將有報警提示。根據生產需要可選擇工位要求（如六工位，八工位）。本機與物料接觸部位均采用優質不銹鋼制作。本機符合GMP要求。
主要參數:
1、 機械工位：六工位
2、 袋子材料：PET/AL/CPP復合膜
3、 袋子類型：自立袋,平面袋
4、 袋子尺寸：長(100～350mm)×寬(100～210mm)
5、 生產速度：20-60袋/分（其速度由產品自身及填充重量決定）
6、 電源：380V 三相四線
7、 功率：2.5KW
8、 工作氣壓：0.6～0.8MPa
9、 耗氣量：0.8m3/min
10、 外形尺寸:2215mm×1280mm×1650mm
GD6-200C Pouch Packing Machine
This machine is a new generation, based on the experience of the same products home and abroad, this is a new generation.
It is widely used for packing various kinds of materials. Assorted with liquid filling device, combination weigher, screw scale, it can pack different materials like liquid, powder, granular, solid and so on.
Using the famous brand PLC and touch screen, it is easy to operate. Frequency control device can adjust the speed optionally in the suitable limit. IF the bag is not opened enough, the automatic detection function will not fill and seal and reuse the bags. It can alarm when the working air pressure and heating pipe have breakdown. According to the capacity, you can choose different working positions like six and eight.
The parts contacting with material use the high quality stainless steel.
This machine is in accord with GMP
Technical parameters:
1. Working position: 6
2. Pouch material: PET/AL/CPP composite membrane
3. Pouch type: doypack, flat bag
4. Pouch size: (100-350)*(100-210) (L*W)
5. Speed: 20-60 pouches/min
6. Voltage: 380V, three-phase four- wire
7. Power: 2.5KW
8. Air pressure: 0.6-08Mpa
9. Air consumption: 0.8m3/min
10. Dimensions: 2215*1280*1650mm
